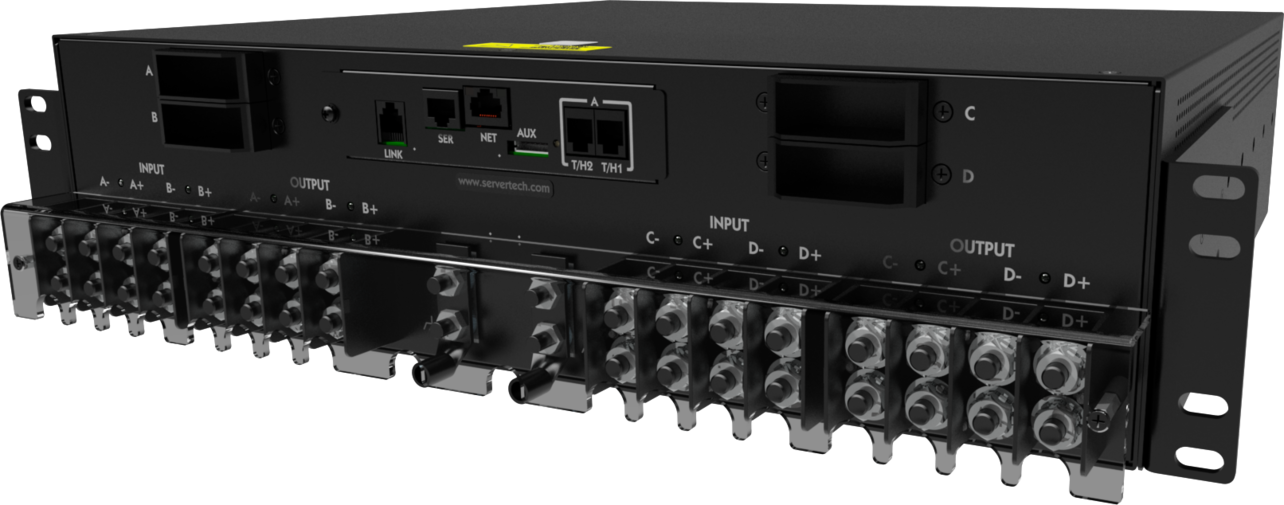

Switched -48VDC (4) 125A inputs (4) 125A outputs

The Sentry 48DCW-4X125-01 Intelligent PDU and Remote Power Manager minimizes the impact of locked-up routers, servers and other network devices on business-critical networks. CLECs, ILECs, ISPs and enterprises use the Sentry 48DCW-4X125-01 to manage equipment in remote sites, co-location facilities and network operation centers. Sentry 48DCW-4X125-01 eliminates the need to dispatch a field service technician for manual intervention when devices lock-up. Using a Sentry 48DCW-4X125-01, the network operations center can quickly restart locked-up remote network servers to ensure that the network is fully operational around the clock.



Key Features

Switched 48VDC 2 100A inputs 8 20A outputs key f1

Switched 48VDC 2 100A inputs 8 20A outputs key f2

Switched 48VDC 2 100A inputs 8 20A outputs key f3



Family Specifications

Branch Monitoring: None Power Pivot Input:   No
Branch Overcurrent Protection:    Product Height (inch):  4.4
Branch Overcurrent Protection Type:  Fuse Disconnect  Product Height (mm): 112
Dual Input:  No  Product Max Depth (inch):
High Retention Outlets:  No  Product Max Depth (mm):
Input Current Display:  None  Product Nominal Depth (inch):  16.0
Input Monitoring:  None  Product Nominal Depth (mm):  407
Locking Outlets:  No  Product Width (inch):  17.0
Max Operating Temperature:  50 °C  Product Width (mm):  432
Fast Movers:  No
Mounting:  2.5U Horizontal
Outlet Monitoring:  Current (A)
PDU Platform:  CDU1



Product Specifications

48DCWB-04-4X125-E0NB (-48 VDC)  DOWNLOAD DATASHEET

Input Power Capacity (kW): 24.0
Input Plug Type: Other
Input Current (A): 500
Input Current Rated (A): 500
Input Nominal Voltage (V): -48
Input Phase: DC
Input Cord Location:
Outlet Form Factor:
Total Outlets: 4
Other Outlets: 4



Drawings

Design Diagram - DD 412-48125-3



Documents

Firmware

Download Center



Manual

UG - (-48 VDC) 300A and 600A Remote Power Manager - Installation and Operations Manual (v7.0)

UG - (-48 VDC) 75A and 100A Remote Power Manager - Installation & Operations manual (v7.0)



Application Notes

AN 48VDC-001: How can I monitor and manage DC power for a rack with two Juniper MX960’s?





Technical Notes

TN - Sentry -48VDC Fuses and Circuit Breakers

TN - Using LDAP with Sentry Firmware and Sentry Power Manager (SPM) (303-9999-30)



Compliance

Export Compliance



Warranty

Warranty Policy
